Produkt-Details
Place of Origin: Shenzhen, China
Model Number: CD15Pro
Zahlungs-u. Verschiffen-Ausdrücke
Minimum Order Quantity: 1 Set
Packaging Details: Carton
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1000 Set / Month
Frequency Range: |
1428~1448MHz (Std.) / 2401~2481MHz / 806~826MHz |
Tx Power: |
25dBm ± 2 |
Modulation: |
QPSK / 16QAM / 64QAM |
Data Rate: |
24Mbps @ 10MHz (Peak) |
Serial Port: |
1TTL / 1RS485 / 1 S.BUS |
Power Supply: |
DC12V~24V |
Dimension: |
≤ 94.5 × 77 × 32mm (Air) |
Weight: |
< 330g (Air) |
Frequency Range: |
1428~1448MHz (Std.) / 2401~2481MHz / 806~826MHz |
Tx Power: |
25dBm ± 2 |
Modulation: |
QPSK / 16QAM / 64QAM |
Data Rate: |
24Mbps @ 10MHz (Peak) |
Serial Port: |
1TTL / 1RS485 / 1 S.BUS |
Power Supply: |
DC12V~24V |
Dimension: |
≤ 94.5 × 77 × 32mm (Air) |
Weight: |
< 330g (Air) |

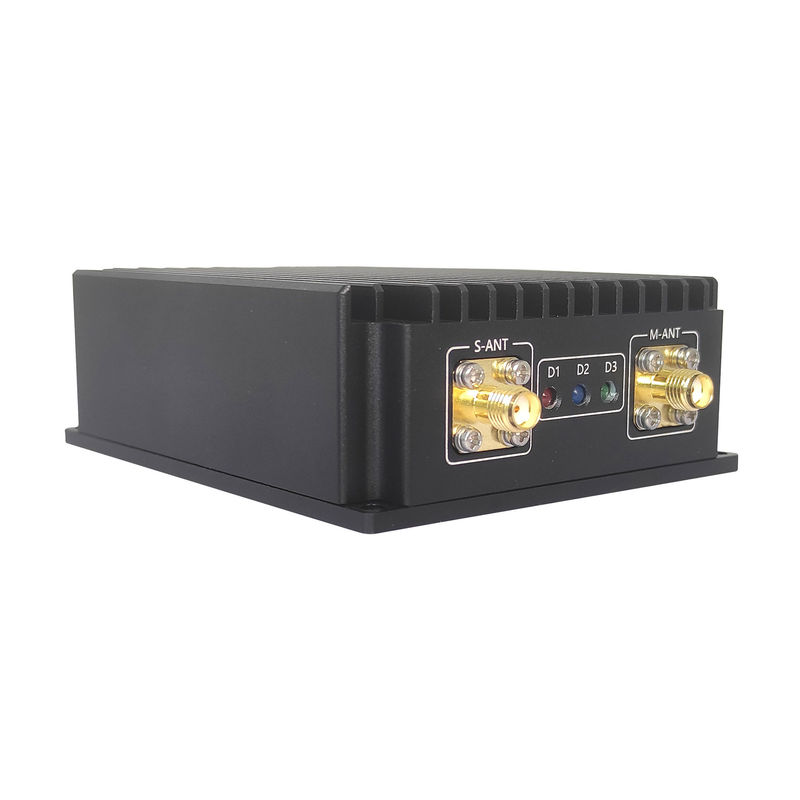

CD15NMTPro is a VTX (Video Transmitter) for UAV & Drones, it supports
Accessories
OMNI Antenna for Air Unit × 2
OMNI Antenna for Ground Unit × 2
ETH Cable × 2 or ETH Cable × 1 + SDI/HDMI Cable × 1 (Customized)
Serial Cable × 2
S.BUS Cable × 1
XT30 Power Cable × 1
